Leírás
Type & Specs |

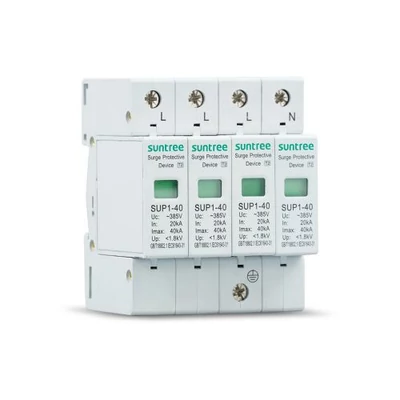

SUP1 B,C,D / OEM spd |
|||||
Protection Level |
B,C,D |
|||||
Rated Operating Voltage Un(V) |
380V/220V |
|||||
Max continuous operating voltage Uc/V |
275V |
320V |
385V |
385V |
385V |
420V |
Voltage protection level up(KV) |
≤1.0 |
≤1.20 |
≤1.80 |
≤2.0 |
≤2.2 |
≤2.8 |
Maximum discharge current Imax(8/20μs)KA |
10 |
20 |
40 |
60 |
80 |
100 |
Nominal discharge current In(8/20μs)KA |
5 |
10 |
20 |
30 |
40 |
60 |
Response times |
≤25 |
|||||
Test Stardard |
IEC61643-1/GB18802-1 |
|||||
Operating Environment |
-40 degree to + 85 degree |
|||||
Max Connection Line |
35mm2 hard wire/35mm2 strand wire copper line |
|||||
Recommended Connection Line |
16mm2 hard wire/25mm2 strand wire copper line |
|||||
Installation |
Standard Rail 35mm |
|||||
Material of outer covering |
Burning -proof Nylon |
Paraméterek
Áram | AC |
Fázis | 3 |
Feszültség | 420 V |
Pólusszám | 3P+N |
